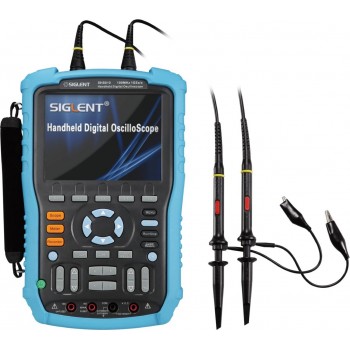

SHS810 Handheld Oscilloscopes

SHS810 Handheld Oscilloscopes
Click image for Gallery
  • Brands SIGLENT
  • Product Code: SHS810
  • Availability: 2-3 Weeks
  • 517.00€ 479.00€
  • *Η τιμή είναι χωρίς Φ.Π.Α.
- +


High-performance oscilloscope
●Bandwidth: 100MHz ,
●Real-time sampling rate: 1G Sa/s
●Equivalent sampling rate: 50G Sa/s
●Memory depth: 2Mpts

Data recorder function
●7M internal storage, up to18 hours recording time
●USB port, up to 3000 hours recording time
●Record, replay and zoom function supported

High precision multimeter
● 6000 counts display
● Accurate measurement of DCV,  ACV, DCI, ACI
● Accurate measurement of Resistance, Diode, Capacitance, Continuity

TrendPlot
● 32 measurement  trendplot  analyzer
● Scope: 800k points capacity, more than 24 hours recording time
● Meter: 1.2M points capacity 9320 hours recording time at 0.05Sa/s

Standard Accessories:
1. Two Passive Probes
2. Multimeter pen
3. USB data cable
4. DC adapter
5. Manual
6. CD


Scope SHS810 / Multimeter

  • Bandwidth : 100MHz
  • Rise Time : ≤3.5ns
  • Input Impedance : 1MΩ±2, 18pf±3pf
  • Real Time Sampling Rate : Single Channel: 1GSa/s,
                                                Double Channels: 500MSa/s
  • Equivalent Sampling Rate : 50GSa/s
  • Memory Depth : 2Mpts
  • Time Base Range : 2.5 ns/ div – 50s/ div
  • Scan Range : 100ms/ div  50s/ div
  • Vertical Sensitivity : 2mV/div – 100V/div(1-2-5 step)
  • Vertical Resolution : 8 bits
  • Trigger Types : Edge, Pulse, Video, Slope, Alternative
  • Frequency Counter : 6 bits
  • Connection : USB Device, USB Host
  • Math : +, -, * , /, FFT
  • Oscilloscope Trend Plot : 800K points


Multimeter Specification

  • DC Voltage - Range : 60mV - 1000V, Accuracy : ±1%±15digit
  • AC Voltage - Range : 60mV - 750V, Accuracy : ±1%±15digit
  • DC Current - Range : 60mA - 10A, Accuracy : ±1%±5digit
  • AC Current - Range : 60mA - 10A, Accuracy : ±1%±5digit
  • Capacitance - Range : 40.00nF, Accuracy : ±3%±10digit
                                         : 400.0nF-400.0uF, Accuracy : ±4%±5digit
  • Resistance - Range : 600Ω - 60MΩ,  Accuracy : ±1%±5digit
  • Continuity buzzer : <50Ω
  • Diode : 0V2.0V
  • Trend plot : 1.2M points
  • Recorder : 7M points
  • Measuring mode : Manual/Auto



General Feature

  • Display : 5.7 inches color TFT-LCD, 320*234
  • Power Supply : Charging/Battery
  • Power Mode : Lithium battery: 7.4V 5000mAh, Battery lasts 5 hours;
                           DC adapter: 100-240V 50/60Hz input, 9V 4A output
  • Weight : 1.5Kg
  • Dimension : 163.2mm×259.5mm×53.3mm
  • Accessories : Two passive probes, multimeter pen USB data cable,
                           DC adapter, manual, CD.
