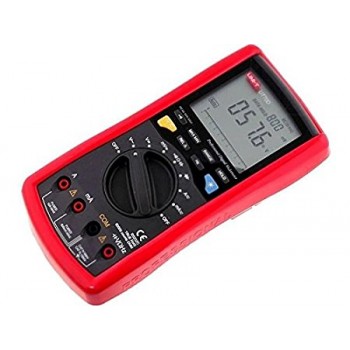

UT70D Digital Multimeter 79999 Digits

UT70D  Digital Multimeter 79999 Digits
Click image for Gallery
  • Brands Uni-Trend
  • Product Code: UT70D
  • Availability: In Stock
  • 115.00€
  • *Η τιμή είναι χωρίς Φ.Π.Α.
- +


SPECIFICATIONS



Basic Functions

Range

Best Accuracy

DC Voltage

80mV/800mV/8V/80V/800V/1000V

+/-(0.05%+10)

AC Voltage

800mV/8V/80V/800V/1000V

+/-(0.8%+20)

DC Current

80mA/800mA/8A/10A

+/-(0.2%+40)

AC Current

80mA/800mA/8A/10A

+/-(0.5%+40)

Resistance

800R/8k/80k/800k/8M/80M

+/-(0.3%+40)

Conductance

80nS

+/-(2%+120)

Capacitance

1nF/10nF/100nF/1μF/10μF/100μF

(2%+3)

Frequency

1kHz/10kHz/100kHz/1MHz

+-(0.02%+1)

Duty Cycle

1%~99.9%

Special Functions





Fused 10A Range





Auto Ranging





Diode





Continuity Buzzer





True RMS

AC



Peak/Min/Max





Max/Min/Avg





Relative Mode





Auto Data Hold





RS232C





Display Backlight





Full Icon Display





Sleep Mode





Low Battery Display





Input Impedance for DC Voltage Measurement

80 mV  , 800 mV 4000 MΩ
other ranges   10MΩ



Max Display

79999 (frequency measurement counts 99999)



Analog Bar Graph






            GENERAL CHARACTERISTICS

Power

9V Battery (6F22)

LCD Size

62 x 53mm

Product Colour

UT70D-Grey, Holster - Red

Product Net Weight

600g (including holster)

Product Size

195 x 90 x 40mm

Standard Accessories

Test Lead, Battery, English Manual, Test Clip, RS232C Interface Cable, Software, Holster
